HDJS288 HAIDA high quality and precise plastic tubes cups bottle caps make PET Preform injection molding moulding machine price

FOB Reference Price:Get Latest Price
US $10,000-60,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HDJS288
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
HAIDA
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
624-779g
Injection Rate:
233g/s-290.5g/s
Clamping Force:
2880KN
Opening Stroke:
610MM
Power(W):
26kw
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
product:
PET preforms
Keyword:
PET Preform machine price
color:
White/blue
Machine:
injection moulding machine
Machine weight:
8.5t
Function:
pet preform making
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Warranty:
One Year
Screw Diameter:
60-67mm
Machine dimension(L*W*H):
6.6x1.6x2.4
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN PALLET AND WOODEN BOX
Port
NINGBO CHINA
Product Categories
Product Description

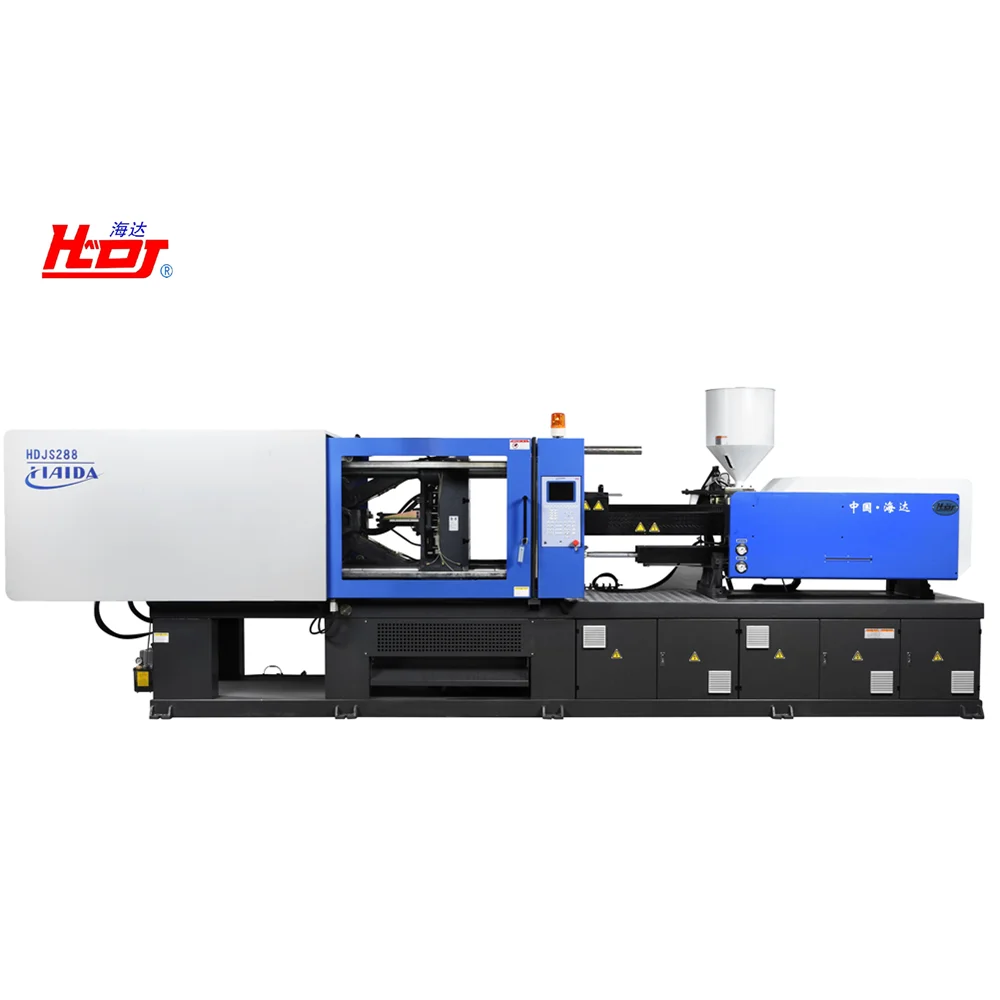

HDJS288 Servo Energy-Saving Plastic Injection Molding Machine
Number Item
HDJS288
Category
Hot Sale IMM
OEM
Available
Warranty
1 Year
Factory
Yes

Application >>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.


Technical Parameters >>

MODEL
        HDJS288
ITEM
UNIT
DATE





  INJECTION    UNIT
Screw Diameter
mm
60
65
67
Screw L/D Ratio
L/D
21.7
20
19.4
Injection Volume
CM3
686
805
856
Shot Weight
g
624
733
779
Plasticing Capacity
g/s
34.1
40
42.5
Injection Rate
g/s
233
273.5
290.5
Injection Pressure
Mpa
190
162
152
Screw Speed
r/min
0-170



   CLAMPING             UNIT
Clamping Force
KN
2880
Opening Stroke
mm
610
Mould Thickness(Min-Max)
mm
220-630
Space Between Tie-Bars
mm
610x610
Ejector Stroke
mm
165
Ejector Number
PC
13
Ejector  Force
KN
70






    GENERAL
Motor Power
KW
26
Heater
KW
18
Machine Dimension
m
6.6x1.6x2.4
Machine Weight
t
8.5
Mould Orientation Ring Diameter
mm
Φ160
System Pressure
MPa
16
Nozzle Radius
mm
SR15
Oil Tank Capacity
L
550

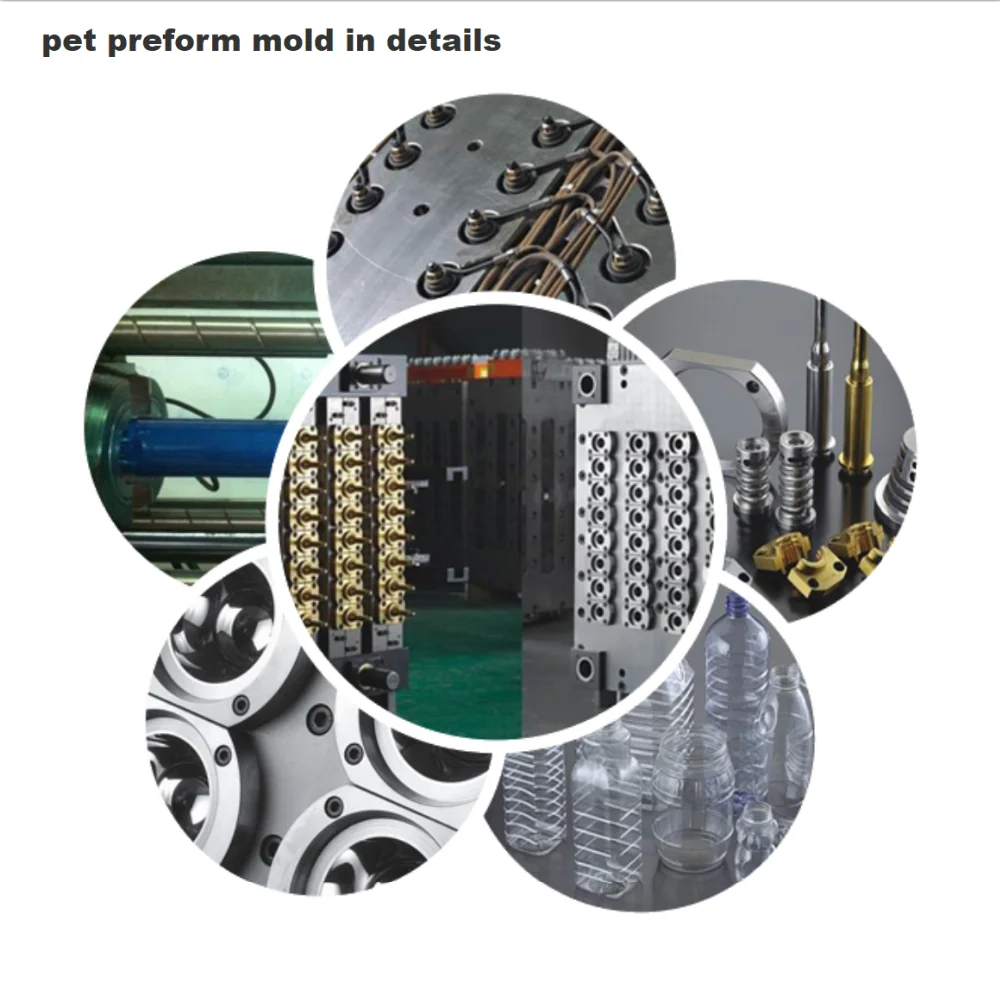

Neck diameter 30mm 500ml pet preform with 32 cavity mold the production is about 5000-5300pcs/hr
Neck diameter 30mm 1L pet preform with 24 cavity mold the production is about 2800-3200pcs/hr

maybe you want to check:
1 cavity 5 gallon pet preform machine
if you want to know cap making machine, pls click




Characteristics >>


HAIDA HDJS Series Servo Energy-Saving Injection Molding Machine.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0. Compared with the traditional injection molding machine can save electricity <80%. Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.

Improve The Production Efficiency. Quick Response And High Efficiency. Injection molding machine to achieve maximum output in 0.05 s, 50 rpm can be up to 140 bar. High Repeat Precision, Save Raw Materials. Repeated injection precision can reach <=3%. Pressure Is Stable, Improve the Quality Of Molding. Pressure fluctuation quantity is less than + / - 0.5 bar.

Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions, Low Heat And Cooling Energy Demand Is Low, More Suitable For Production Environment With Air Conditioning.

Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C



Similar Products >>


Detailed Images
About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
