HDJS168 Pet Preform Making machine

FOB Reference Price:Get Latest Price
US $10,000-100,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Tube Shoulder Injection
Style:
Horizontal
Brand Name:
HAIDA
Model Number:
HDJS168
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
230g-330g
Injection Rate:
118g/s ~ 170g/s
Clamping Force:
1680KN
Opening Stroke:
420mm
Power(W):
15kw
Certification:
ISO9001/CE/BV
After-sales Service Provided:
Engineers available to service machinery overseas
Series:
HDJS
Name:
Horizontal Plastic Injection Molding Machine
Color:
Blue \ White
Product name:
HDJS168 high precision servo energy saving injection molding machine
Packaging & Delivery
Packaging Details
wooden pallet
Port
NingBo
Lead Time :
about 30 days

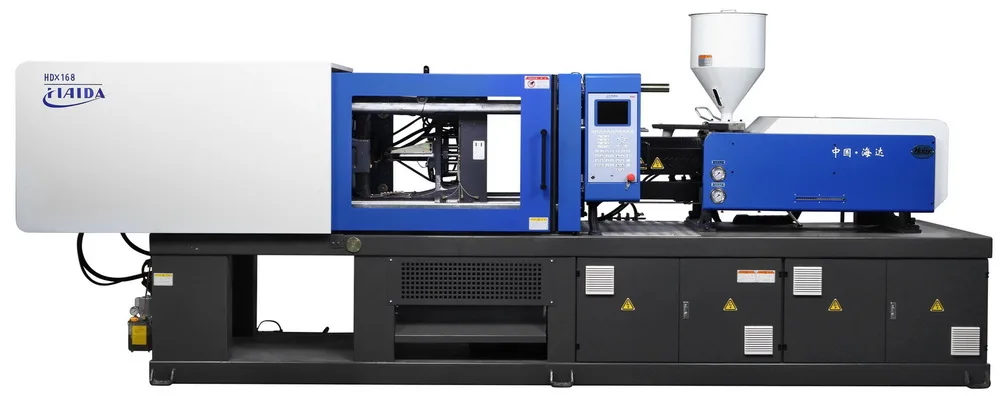

HDJS168  Pet Preform making machine



SUPERIOR ENERGY EFFICIENCY

To save power consumption

Cooling phase, the motor does not need to work,powe consumption is 0. Compared with the traditional injection molding machine can save electricity <80%

To save water and fuel

Compard with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4~1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.



IMPROVE THE PRODUCTION EFFICIENCY

Quick response and high efficiency

Injection molding machine to achieve maximum output in 0.05s

50rpm can be up to 140bar

High repeat precision,save raw materials

Repeated injection precision can reach <=3%

Pressure is stable, improve the quality of molding

Pressure fluctuation quantity is less than +/-0.5bar



STABLE AT LOW SPEED



Closed-loop control pressure and flow, at low pressure and low flow operation performance is particularly outstanding, shoot rubber speed in less than 1 mm/sec without crawing,pluse,high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machines is stable. In addition, the pressure stability of the pressure and flow rate, high control accuracy and repeat precision.



MACHINE SERVICE LIFE LONGER AND CLEANER WORKING ENVIRONMENT

Less noise emissioins

The noise of th hydraulic system control within the scope of the national standard.

Low heat and cooling energy demand is low, more suitable for production environment with air conditioning.

Injection molding machine boot into the steady-state oil temperature rise of 8oc-10oc
