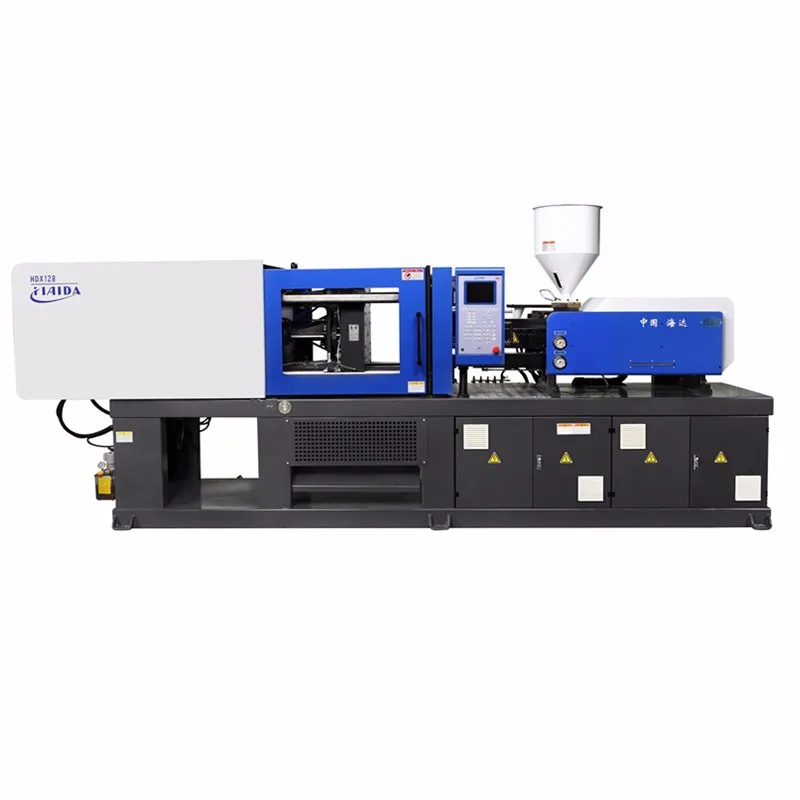

Haida pvc best selling products injection molding machine

FOB Reference Price:Get Latest Price
US $10,000-1,000,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HDX128
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Injection
Style:
Horizontal
Brand Name:
HAIDA
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
160g-210g
Injection Rate:
100g/s
Clamping Force:
1280KN
Opening Stroke:
360mm
Power(W):
8.5KW
Certification:
SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Blue \ White
Supply Ability
Supply Ability:
360 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden pallet with plastic bag and wooden box
Port
NINGBO
Product Description

Characteristics


HDX series injection molding machine design concept,continue to implement standardized,simplify the structure of products,to ensure the highest reliability,using the latest 3D control technology,with the lowest possible price to ensure haida consistent high quality.HDX series in functional,modernity and high productivity left a deep impression to people.These products with human body engineering design,the use of famous manufacturers of components,from the engine to every detail to ensure the quality of our products and even their apperance is superb,haida HDX series injection molding machine in the field of entry-level injection molding machine in the global setting the new standard.

Advantages

Energy saving, environmental, low noise, quick response, high-efficiency, Shorter Cycle Time, Improve Production efficiency

Application


Injection Molding Machine can have a molding complex,the size is accurate or plastic with metal insert of the fine and close texture,are widely used in national defense,electrical,automotive,transportaion,building materials,packaging,agriculture,education and health and People's Daily life.Today with the rapid development of plastic industry,injection molding machine no matter in quantity or variety occupies an important position

ITEM
UNIT
DATA


     Injection

          Unit
Screw Diameter
mm
38
40
43
Screw L/D Ratio
L/D
21.1
20
18.6
Injection Volume
CM3
181
201
232
Shot Weight
g
165
183
211
Injection Pressure
Mpa
177
160
138


       Clamping

           Unit
Clamping Force
KN
1280
Opening Stroke
mm
360
Mould Thickness(Min-Max)
mm
150-430
Space Between Tie-Bars
mm
410*410
Ejector Force
KN
38
Ejector Stroke
mm
130





     General
Motor Power
KW
13
Heater
KW
8.5
Pump Pressure
Mpa
16
Machine Dimension
m
4.6x1.2x2.1
Machine Weight
T
3.8
Mould Orientation Ring Diameter
mm
⌀125
Nozzle Radius
mm
SR10

Improve The Production Efficiency .Quick Response And High Efficiency .Injection molding machine to achieve maximum output in 0.05 s 50 rpm can be up to 140 bar .High Repeat Precision, Save Raw Materials .Repeated injection precision can reach <=3% .Pressure Is Stable, Improve the Quality Of Molding .Pressure fluctuation quantity is less than + / - 0.5 bar .Stable At Low Speed.Closedloop control pressure and flow, at low pressure and low flow operation performance is particularly outstanding, shoot rubber speed in less than 1 mm/SEC without crawling, pulse, high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machine is stable. In addition, the pressure flow automatic compensation when motion, maintain the stability of the pressure and flow rate, high control accuracy and repeat precision. Machine Service Life Longer And Cleaner Working Environment .Less Noise Emissions .Low Heat And Cooling Energy Demand Is Low, More Suitable For Production Environment With Air Conditioning.

Product Categories

Detailed Images

Good products must be based on good equipment and technique. Haida company take advantage of new equipment and technique in the world to develop the design of machines. We don't hesitate to input more about these. Equipped-well design center, Vanward institute in plastic machine industry, R&D Center, CAD design Center and test Center ensure the vanward design of Haida company.

Packing & Delivery

ABOUT  US

HAIDA Machinery is one of the top 10 Chinese injection moulding machinery manufacturer. We are manufacturing different types of injection moulding machines and range starts from 50Ton to 3300 Ton. During the past 28 years, we had established more than 60 sales and service agencies in China and overseas.


EXHIBITION

CERTIFICATES

2005 year State Inspection-Free Product

2005 year Zhejiang Province Well-Known Product

2005 year Zhejiang Province Well-Known Trade Name

2005 year National Torch Program. High-tech Enterprise

2001year CE Certification issued by Germany TüV Company

2001 year BCC(ISO9001) (2000 Version)
