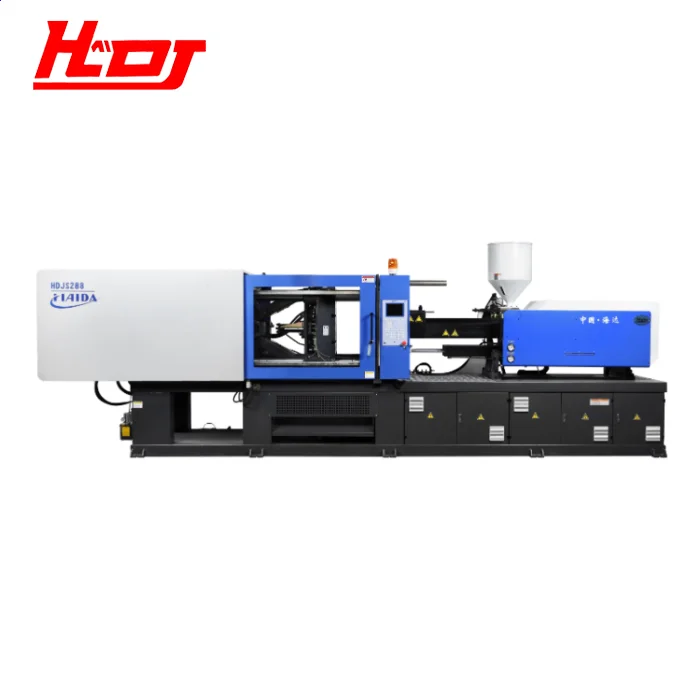

injection molding machine for making plastic blows

FOB Reference Price:Get Latest Price
US $38,000-58,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
NINGBO
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
HAIDA
Model Number:
HDJS288
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
620g-850g
Injection Rate:
255g/s
Clamping Force:
2880KN
Opening Stroke:
610MM
Power(W):
26KW
Certification:
CE/ISO9001/BV
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Injection Molding Machine
Color:
Blue \ White
Machine weight:
8.5t
Packaging & Delivery
Packaging Details
WOODEN PALLET
Delivery Time
20 DAYS

Product Description

ITEM

UNIT

DATA

Injection
Unit

Screw Diameter

mm

60

65

67

Screw L/D Ratio

L/D

21.7

20

19.4

Injection Volume

cm3

686

805

856

Shot Weight

g

624

733

779

Injection Pressure

Mpa

190

162

152

Clamping
Unit

Clamping Force

KN

2880

Opening Stroke

mm

610

Mould Thickness(Min-Max)

mm

220-630

Space Between Tie-Bars

mm

610×610

Ejector Force

KN

70

Ejector Stroke

mm

165

General

Motor Power

KW

26

Heater

KW

18

Pump Pressure

Mpa

16

Machine Dimension

m

6.5×1.6×2.2

Machine Weight

T

8.5

Mould Orientation Ring Diameter

mm

Φ160

Nozzle Radius

mm

SR15





HDJS Servo Energy-Saving Machine



Superior Energy Efficiency



To Save Power Consumption



Cooling phase, the motor does not need to work, power consumption is 0.

Compared with the traditional injection molding machine can save electricity <80%



 Saving Water And Fuel



Compared with the traditional hydraulic power system of the hydraulic oil

consumption reduce

 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.



Living longer 2~3 Double.



Power Consumption Curve Comparison Chart











Improve The Production Efficiency



Quick Response And High Efficiency



Injection molding machine to achieve maximum output in 0.05 s



50 rpm can be up to 140 bar



High Repeat Precision, Save Raw Materials



Repeated injection precision can reach <=3%



Pressure Is Stable, Improve the Quality Of Molding



Pressure fluctuation quantity is less than + / - 0.5 bar





Stable At Low Speed

 Closedloop control pressure and flow, at low pressure and low flow operation performance is

particularly outstanding, shoot rubber speed in less than 1 mm/SEC without crawling, pulse, highstability. System according to the actual product process requirements, set arbitrary pressure

and flow, avoid excess heat generation, the oil temperature relative to the traditional injection

molding machine is stable. In addition, the pressure flow automatic compensation when motion, maintain the stability of the pressure and flow rate, high control accuracy and repeat precision.





Machine Service Life Longer And Cleaner Working Environment



Less Noise Emissions



Low Heat And Cooling Energy Demand Is Low,

More Suitable For Production Environment With Air Conditioning



Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C



Machine in Details




 Meticulous division of labour, consecutive processes, professional experience of manufacture and high standard equipment ensure the high quality of the machine. We put stress on every working procedure to meet the requirements of customers for high quality. Recently, we have introduced high precision machining tools,with the equipment of cutting machine tools, heat-treating facilities, check out test sets and painting facilities, the processing ability of Haida Company, especially for the large and supersized machine reach a high level in plastic machine industry while the quality of the machine is ensured at the same time.

   Good products must be based on good equipment and technique. Haida company take advantage of new equipment and technique in the world to develop the design of machines. We don't hesitate to input more about these. Equipped-well design center, Vanward institute in plastic machine industry, R&D Center, CAD design Center and test Center ensure the vanward design of Haida company.

Packaging & Shipping



Our Services

There are more than 10 Agents of our Haida  located in the world.

Engineers available to service machinery overseas

Company Information





NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province

famous brand and Zhejiang province well known product. In 2000, we had the right of selfimport and export

and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007.

 Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.
