Quick Details

  • Condition: New
  • Type: Preform Injection
  • Style: Horizontal
  • Brand Name: HAIDA
  • Model Number: HDJS88
  • Place of Origin: Zhejiang, China (Mainland)
  • Plastic Type: Thermoplastic
  • Automatic: Yes
  • Injection Weight: 155G
  • Injection Rate: 62-1175g/s
  • Clamping Force: 880KN
  • Opening Stroke: 320MM
  • Power(W): 11KW
  • Certification: CE/ISO9001/BV
  • After-sales Service Provided: Engineers available to service machinery overseas
  • product: injection molding machine
  • color: White/blue
  • Machine: injection moulding machine
  • Machine weight: 2.8T
  • Function: plastic injection molding machinery

Packaging & Delivery

Packaging Details WOODEN PALLET
Delivery Time 30 DAYS



Product Description

ITEM

UNIT

DATA

Injection
Unit

Screw Diameter

mm

35

38

40

Screw L/D Ratio

L/D

20.5

19

18

Injection Volume

cm3

144

170

188

Shot Weight

g

131

155

171

Injection Pressure

Mpa

194

165

149

Clamping
Unit

Clamping Force

KN

880

Opening Stroke

mm

320

Mould Thickness(Min-Max)

mm

150-360

Space Between Tie-Bars

mm

365×365

Ejector Force

KN

38

Ejector Stroke

mm

100

General

Motor Power

KW

11

Heater

KW

6.5

Pump Pressure

Mpa

16

Machine Dimension

m

4.1×1.2×1.9

Machine Weight

T

2.8

Mould Orientation Ring Diameter

mm

Φ125

Nozzle Radius

mm

SR10

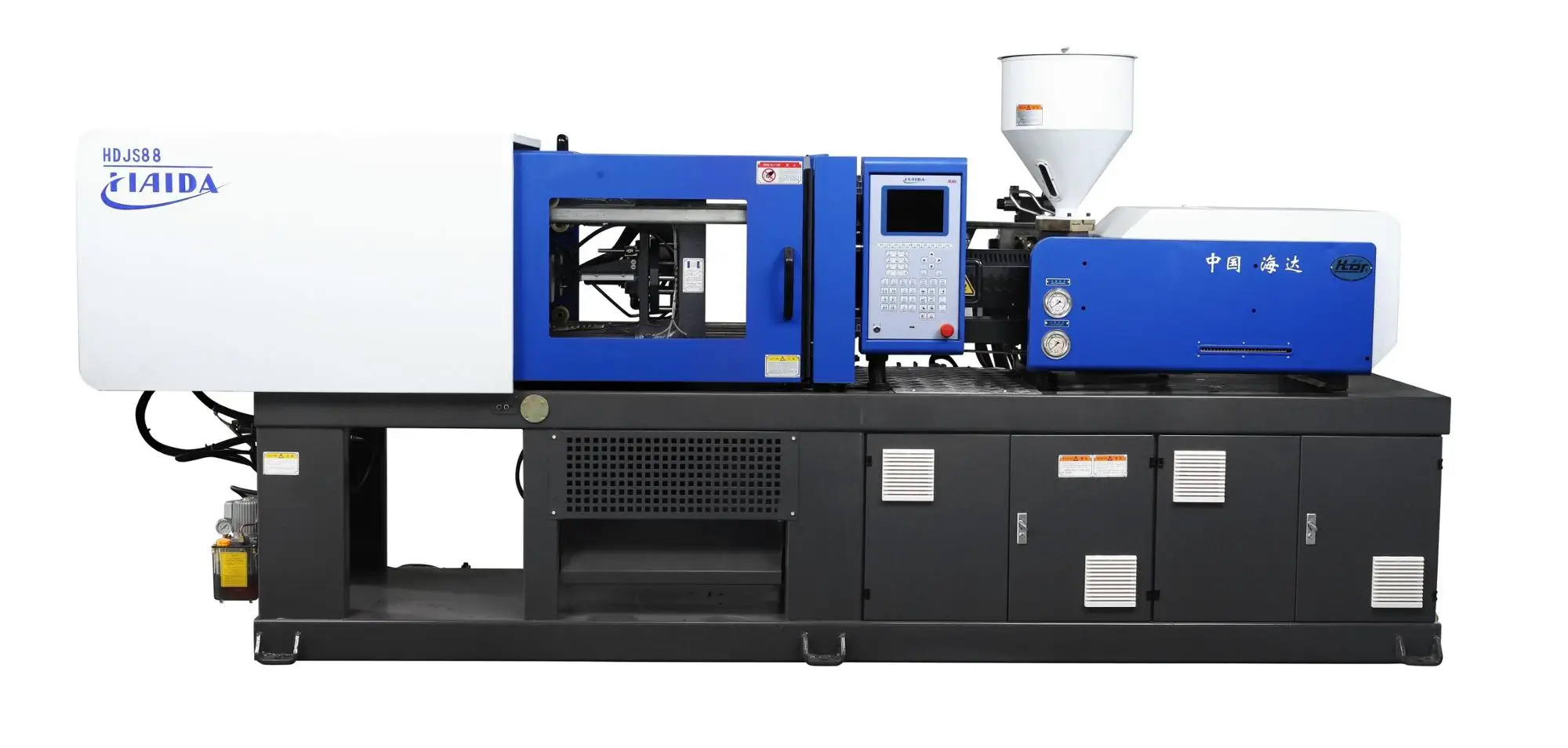

HDJS Servo Energy-Saving Machine



Superior Energy Efficiency



To Save Power Consumption



Cooling phase, the motor does not need to work, power consumption is 0.

Compared with the traditional injection molding machine can save electricity <80%



 Saving Water And Fuel



Compared with the traditional hydraulic power system of the hydraulic oil

consumption reduce

 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.



Living longer 2~3 Double.

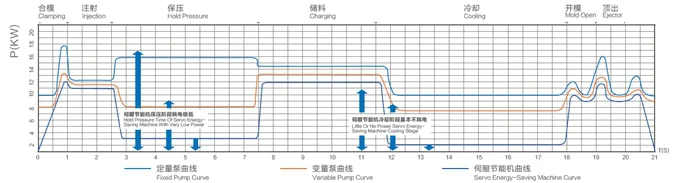

Power Consumption Curve Comparison Chart









Improve The Production Efficiency



Quick Response And High Efficiency



Injection molding machine to achieve maximum output in 0.05 s



50 rpm can be up to 140 bar



High Repeat Precision, Save Raw Materials



Repeated injection precision can reach <=3%



Pressure Is Stable, Improve the Quality Of Molding



Pressure fluctuation quantity is less than + / - 0.5 bar

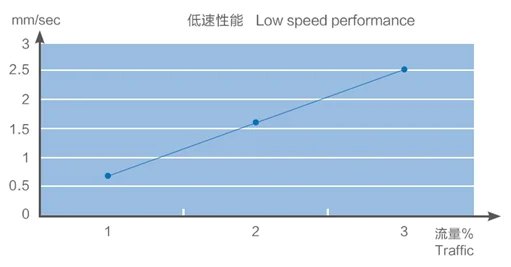

Stable At Low Speed



 Closedloop control pressure and flow, at low pressure and low flow operation performance is particularly

outstanding, shoot rubber speed in less than 1 mm/SEC without crawling, pulse, high stability. System according to the actual product process requirements, set arbitrary pressure and flow, avoid excess heat generation, the oil temperature relative to the traditional injection molding machine is stable. In addition, the pressure

 flow automatic compensation when motion, maintain the stability of the pressure and flow rate, high control accuracy and repeat precision.



Machine Service Life Longer And Cleaner Working Environment



Less Noise Emissions



Low Heat And Cooling Energy Demand Is Low,

More Suitable For Production Environment With Air Conditioning



Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C

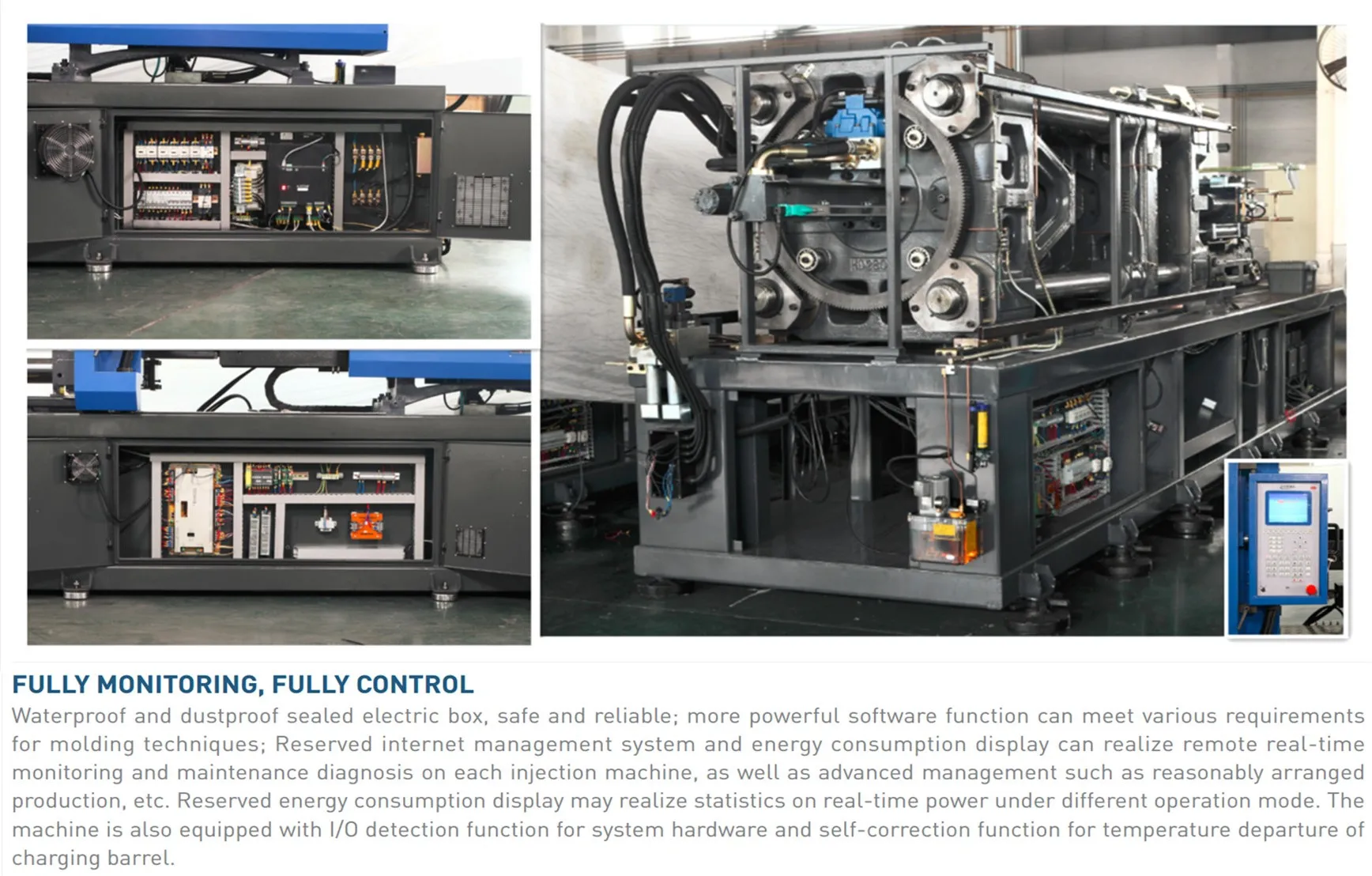

Machine in Details




 Meticulous division of labour, consecutive processes, professional experience of manufacture and high standard equipment ensure the high quality of the machine. We put stress on every working procedure to meet the requirements of customers for high quality. Recently, we have introduced high precision machining tools,with the equipment of cutting machine tools, heat-treating facilities, check out test sets and painting facilities, the processing ability of Haida Company, especially for the large and supersized machine reach a high level in plastic machine industry while the quality of the machine is ensured at the same time.

   Good products must be based on good equipment and technique. Haida company take advantage of new equipment and technique in the world to develop the design of machines. We don't hesitate to input more about these. Equipped-well design center, Vanward institute in plastic machine industry, R&D Center, CAD design Center and test Center ensure the vanward design of Haida company.

Packaging & Shipping



Our Services

There are more than 10 Agents of our Haida  located in the world.

Engineers available to service machinery overseas

Company Information





NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province

famous brand and Zhejiang province well known product. In 2000, we had the right of selfimport and export

and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007.

 Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.





FAQ



2005 year State Inspection-Free Product
2005 year Zhejiang Province Well-Known Product
2005 year Zhejiang Province Well-Known Trade Name
2005 year National Torch Program. High-tech Enterprise
2001year CE Certification issued by Germany TüV Company
2001 year BCC(ISO9001) (2000 Version)
