Haida 250 ton plastic injection motorcycle molding safety helmet making machine 380 ton for helmet molding manufacturing machine

FOB Reference Price:Get Latest Price
US $52,000-62,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HDJS388
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
HAIDA
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
1131-1477g
Injection Rate:
303-396g/s
Clamping Force:
3880KN
Opening Stroke:
665MM
Power(W):
37KW
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
White and Blue
SERIES:
HDJS
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
WOODEN PALLET
Port
NINGBO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 30 To be negotiated
Product Categories
Product Description

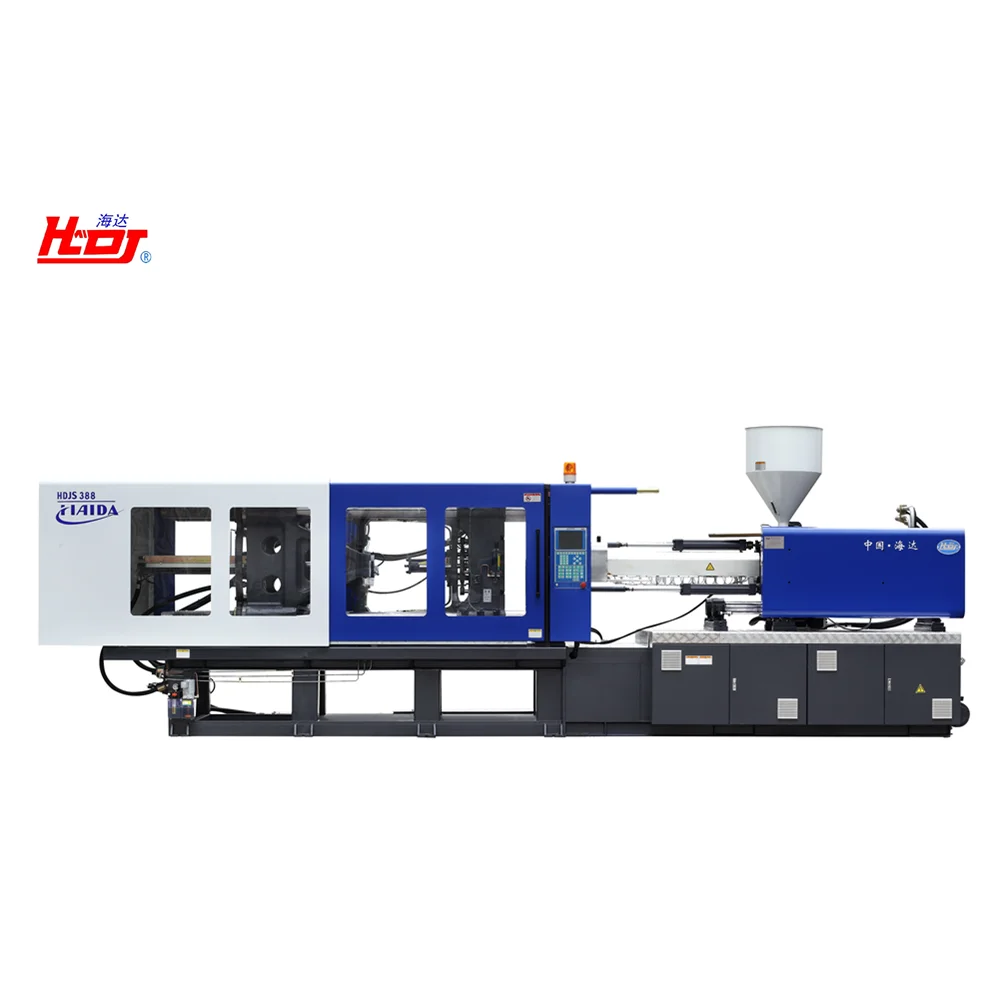

HDJS388 Servo Energy-Saving Plastic Injection Molding Machine
Number Item
HDJS388
Category
HDJS Series
OEM
Available
Warranty
1 Year
Factory
Yes

Application >>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.


Technical Parameters >>

MODEL
HDJS388
ITEM
UNIT
DATA



INJECTION UNIT
Screw Diameter
mm
70
75
80
Screw L/D Ratio
L/D
20.1
18.8
17.6
Injection Volume
CM3
1242
1426
1623
Shot Weight
g
1131
1298
1477
Injection Rate
g/s
303
348
396
Injection Pressure
Mpa
180
156
138

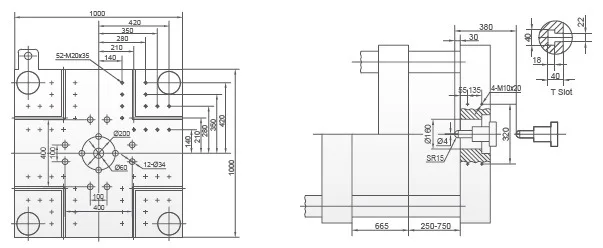

CLAMPING UNIT
Clamping Force
KN
3880
Opening Stroke
mm
665
Space Between Tie-Bars
mm
720X720
Mould Thickness(Min-Max)
mm
250-750
Hydraulic Ejection
KN
102
Ejector Stroke
mm
200





GENERAL
Pump Pressure
MPa
16
Motor Power
KW
37
Heater
KW
24
Machine Dimension
m
7.3X1.9X2.7
Machine Weight
t
13.5
Mould Orientation Ring Diameter
mm
Φ160
Nozzle Radius
mm
SR15




Characteristics >>

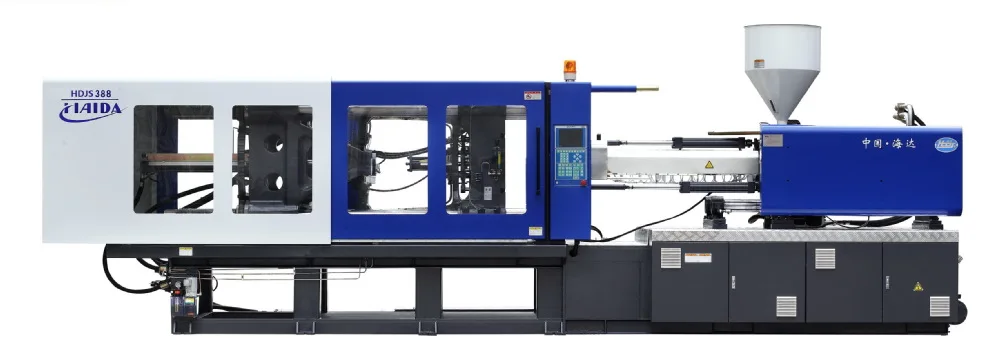

HAIDA HDJS Series Servo Energy-Saving Injection Molding Machine.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0. Compared with the traditional injection molding machine can save electricity <80%. Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.

Improve The Production Efficiency. Quick Response And High Efficiency. Injection molding machine to achieve maximum output in 0.05 s, 50 rpm can be up to 140 bar. High Repeat Precision, Save Raw Materials. Repeated injection precision can reach <=3%. Pressure Is Stable, Improve the Quality Of Molding. Pressure fluctuation quantity is less than + / - 0.5 bar.

Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions, Low Heat And Cooling Energy Demand Is Low, More Suitable For Production Environment With Air Conditioning.

Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C



Similar Products >>


Detailed Images

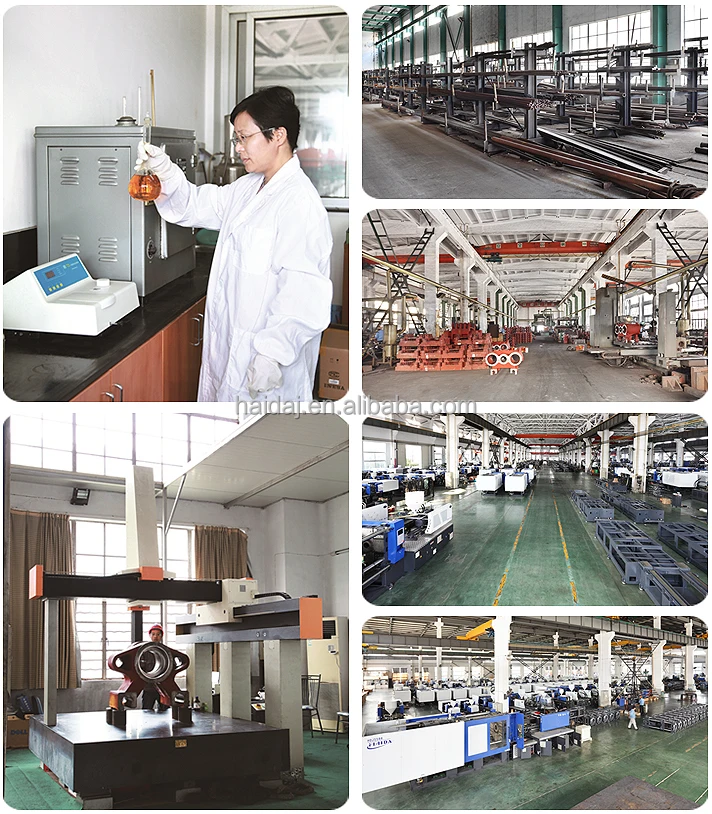

About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
