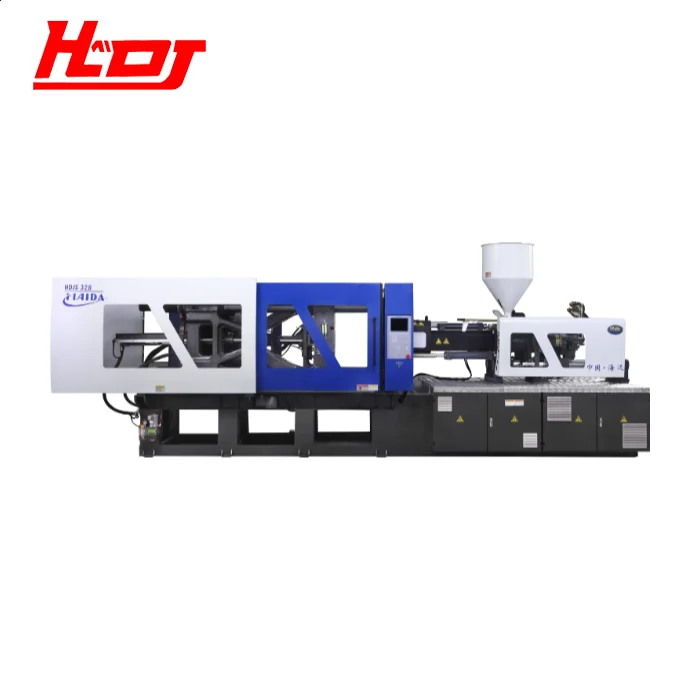

Haida HDX88 small sized plastic injection molding machine

FOB Reference Price:Get Latest Price
US $10,000-50,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
30 Set/Sets per Month
Port:
Ningbo China
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
HAIDA
Model Number:
HDX88
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
155G
Injection Rate:
84-110g/s
Clamping Force:
880KN
Opening Stroke:
320MM
Power(W):
11KW
Certification:
CE/ISO9001
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
Injection Moulding Machine
Keyword:
small sized plastic injection molding machine
Warranty:
One Year
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Screw Diameter:
38mm
Injection pressure:
165mpa
Color:
Blue \ White
Machine weight:
2.8ton
Machine dimension(L*W*H):
4.1x1.1x1.9m
Packaging & Delivery
Packaging Details
wooden pallet and wooden box
Delivery Time
25 days

HDX88 small sized plastic injection molding machine

Product Description



ITEM

UNIT

DATA

Injection
Unit

Screw Diameter

mm

35

38

40

Screw L/D Ratio

L/D

20.5

19

18

Injection Volume

cm3

144

170

188

Shot Weight

g

131

155

171

Injection Pressure

Mpa

194

165

149

Clamping
Unit

Clamping Force

KN

880

Opening Stroke

mm

320

Mould Thickness(Min-Max)

mm

150-360

Space Between Tie-Bars

mm

365×365

Ejector Force

KN

38

Ejector Stroke

mm

100

General

Motor Power

KW

11

Heater

KW

6.5

Pump Pressure

Mpa

16

Machine Dimension

m

4.1×1.2×1.9

Machine Weight

T

2.8

Mould Orientation Ring Diameter

mm

Φ125

Nozzle Radius

mm

SR10







our smallest machine is 50tons , you can check too!



HDX General Series

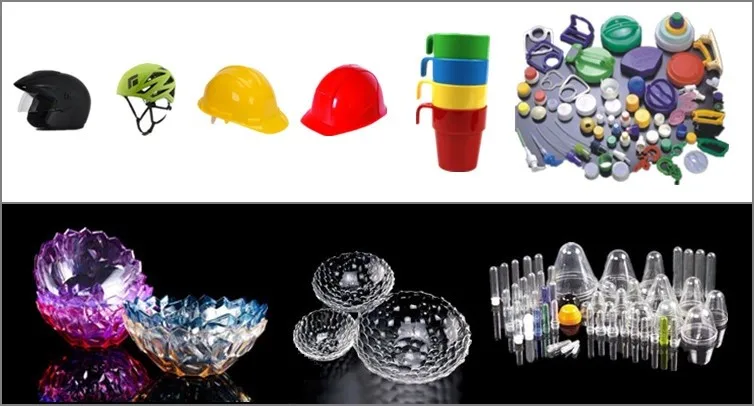

01 Broad Scope Of Application



 02  The Stability Of The Mature And Reliable

Durable

Running Stability



03  High Performance To Price Ratio

Concise And Effective

Rapid Flexible

Manipulation Of The Simplified

Simple Maintenance

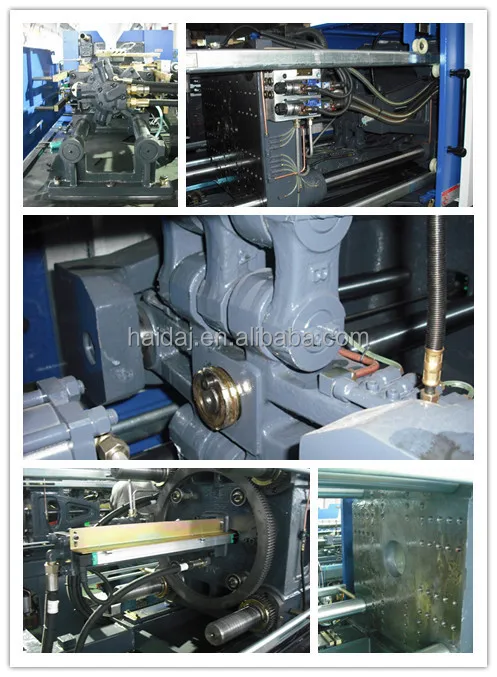

Machine in Details






Meticulous division of labour, consecutive processes, professional experience of manufacture and high standard equipment ensure the high quality of the machine. We put stress on every working procedure to meet the requirements of customers for high quality. Recently, we have introduced high precision machining tools,with the equipment of cutting machine tools, heat-treating facilities, check out test sets and painting facilities, the processing ability of Haida Company, especially for the large and supersized machine reach a high level in plastic machine industry while the quality of the machine is ensured at the same time.





Good products must be based on good equipment and technique. Haida company take advantage of new equipment and technique in the world to develop the design of machines. We don't hesitate to input more about these. Equipped-well design center, Vanward institute in plastic machine industry, R&D Center, CAD design Center and test Center ensure the vanward design of Haida company.






Our Services

There are more than 10 Agents of our Haida  located in the world.

Engineers available to service machinery overseas







Company Information





NINGBO HAIDA Plastic Machinery Co., Ltd. is a large professional production base specialized in manufacturing HDX HDJS HDJL series automatic plastic injection machines and enjoy high reputation in the plastic machinery industry association, vice President of units. In recent years, our company undertake entity of project under the new high-tech enterprise, state inspectionfree product, China famous brand, Zhejiang province famous brand and Zhejiang province well-known product. In 2000, we had the right of selfimport and export and had registed our brand in more than ten countries and areas. Our company was accredited by BCC (ISO9001) and CE certificate in 2001 and ISO14001 and OHSAS18001 in 2007



Established in 1992, Ningbo Haida Plastic Machinery Co., Ltd. become one of the most famous companies in the plastic machinery industry. It covers an area of more than 100 thousand square meters and has a total asset of RMB 350 million. There are 420 workers and staff members including 30% professionals with middle or senior class techinical certificate. Famous senior engineers and experts are invited regularly as our advisers. Our HDJL and HDJS series variable pump and servo motor machines are well-known by our clients.
