Haida HD210L servo energy saving plastic injection molding machine price

FOB Reference Price:Get Latest Price
US $10,000-50,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HD210L
Report Suspicious Activity
Overview
Quick Details
Clamping Force:
210KN
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
HAIDA
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
333-497g
Injection Rate:
155.5-232g/s
Opening Stroke:
500MM
Power(W):
18.5KW
Certification:
CE/ISO9001
Product name:
plastic injection molding machine
brand:
Haida
Voltage:
380V/ 50Hz 3P+N+E (alterable)
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden pallet and wooden box
Port
NINGBO
Product Categories
Product Description

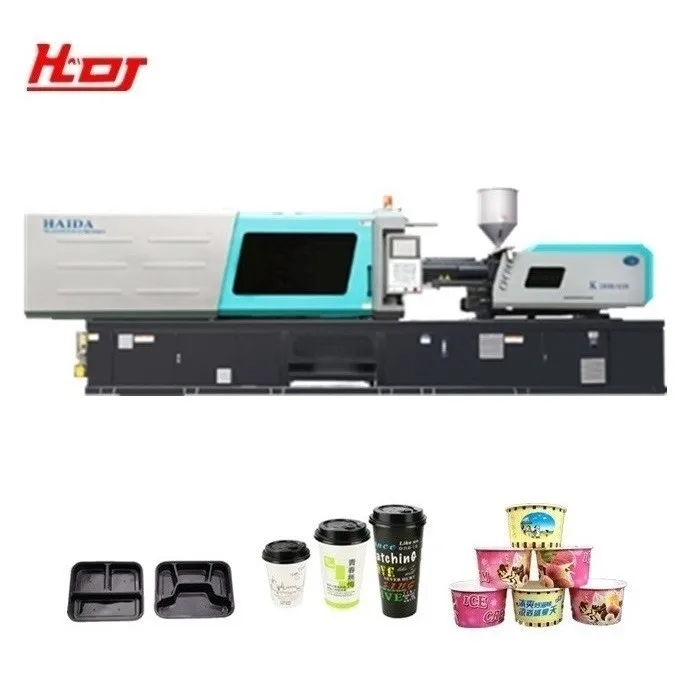

HD210L High Precision Servo Energy-Saving Plastic Injection Machine
Number Item
HD210L
Category
HDL series
OEM
Available
Warranty
1 Year
Factory
Yes

Application>>

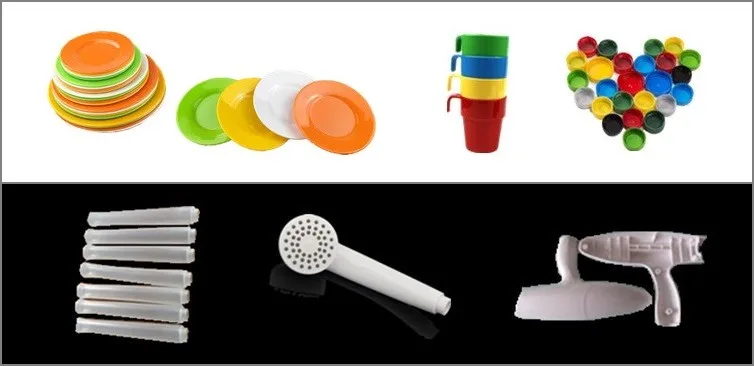

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.

Technical Parameters >>

MODEL
HD210L
ITEM
UNIT
DATA



INJECTION UNIT
Screw Diameter
mm
45
50
55
Screw L/D Ratio
L/D
23.3
21
19.1
Injection Volume
cm3
366
452
546
Shot Weight
g
333
411
497
Injection Rate
g/s
155.5
192
232
Injection Pressure
Mpa
221
179
148



CLAMPING UNIT
Clamping Force
KN
2100
Opening Stroke
mm
500
Space Between Tie-Bars
mm
530X530
Mould Thickness(Min-Max)
mm
200-520
Ejector Force
KN
70
Ejector Stroke
mm
165





GENERAL
Pump Pressure
MPa
16
Motor Power
KW
18.5
Heater
KW
12.6
Machine Dimension
m
5.89X1.38X2.24
Machine Weight
t
7
Mould Orientation Ring Diameter
mm
Φ160
Nozzle Radius
mm
SR15




Characteristics >>


HAIDA L series high precision Servo Energy-saving Injection Machine

New series model launched on the basis of the original series, to meet higher requirements of customers. Coexisted specificity and generality, screw of multiple diameters are optional for each model ,to realize optimized product quality.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0.
Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.



Similar Products >>

Detailed Images


About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.

Packing & Delivery
Certificates
Exhibition and Customer Visiting
