Plastic basket make machine 438TON

FOB Reference Price:Get Latest Price
US $68,000-98,000 / Sets | 1 Set/Sets (Min. Order)
Model Number:
HDJS438
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Brand Name:
haida
Place of Origin:
Zhejiang, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
1488-1822g
Injection Rate:
427-523g/s
Clamping Force:
4380
Opening Stroke:
720
Power(W):
41kw
Certification:
CE,ISO9001
After-sales Service Provided:
Overseas service center available
color:
White/blue
Machine:
injection moulding machine
Machine weight:
16t
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden palent
Port
ningbo
Product Categories
Product Description

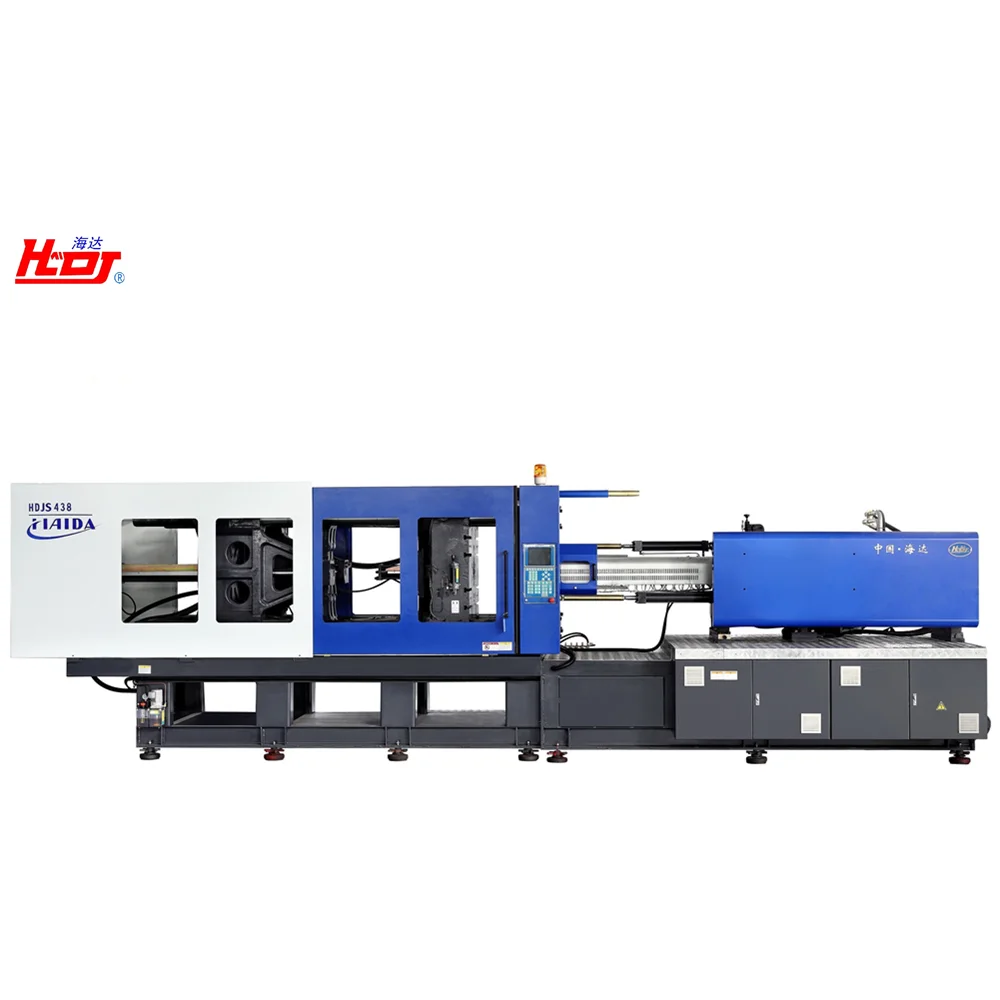

HDJS438 Servo Energy-Saving Plastic Injection Molding Machine
Number Item
HDJS438
Category
Hot Sale IMM
OEM
Available
Warranty
1 Year
Factory
Yes

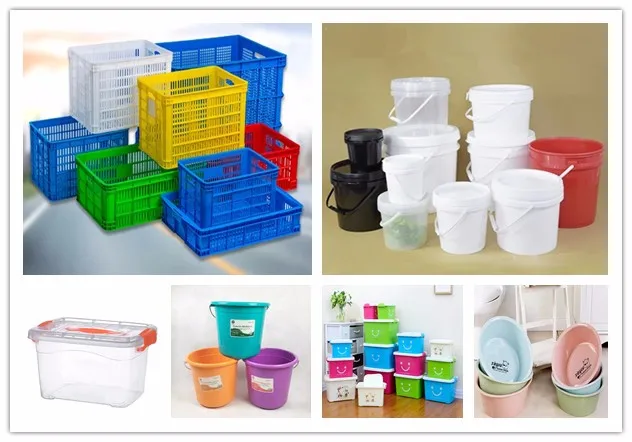

Application >>

Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.


Technical Parameters >>

MODEL
        HDJS438
ITEM
UNIT
DATE





  INJECTION    UNIT
Screw Diameter
mm
75
80
83
Screw L/D Ratio
L/D
22.5
21.1
20.3
Injection Volume
CM3
1634
1860
2002
Shot Weight
g
1488
1693
1822
Plasticing Capacity
g/s
59.6
67.8
73
Injection Rate
g/s
427
485.8
523
Injection Pressure
Mpa
180
158
147
Screw Speed
r/min
0-150



   CLAMPING             UNIT
Clamping Force
KN
4380
Opening Stroke
mm
720
Mould Thickness(Min-Max)
mm
300-780
Space Between Tie-Bars
mm
765x765
Ejector Stroke
mm
200
Ejector Number
PC
13
Ejector  Force
KN
125






    GENERAL
Motor Power
KW
41
Heater
KW
25
Machine Dimension
m
8.0x2.0x2.2
Machine Weight
t
16
Mould Orientation Ring Diameter
mm
Φ200
System Pressure
MPa
15
Nozzle Radius
mm
SR15
Oil Tank Capacity
L
1000




Characteristics >>


HAIDA HDJS Series Servo Energy-Saving Injection Molding Machine.


Superior Energy Efficiency. To Save Power Consumption. Cooling phase, the motor does not need to work, power consumption is 0. Compared with the traditional injection molding machine can save electricity <80%. Saving Water And Fuel. Compared with the traditional hydraulic power system of the hydraulic oil consumption reduce 1/4 ~ 1/3, can achieve without cooling, thus greatly saving water. Living longer 2~3 Double.

Improve The Production Efficiency. Quick Response And High Efficiency. Injection molding machine to achieve maximum output in 0.05 s, 50 rpm can be up to 140 bar. High Repeat Precision, Save Raw Materials. Repeated injection precision can reach <=3%. Pressure Is Stable, Improve the Quality Of Molding. Pressure fluctuation quantity is less than + / - 0.5 bar.

Machine Service Life Longer And Cleaner Working Environment
Less Noise Emissions, Low Heat And Cooling Energy Demand Is Low, More Suitable For Production Environment With Air Conditioning.

Injection molding machine boot into the steady-state oil temperature rise of 8°C to 10°C



Similar Products >>


Detailed Images


About Us


WHY CHOOSE US


HAIDA Machinery established in the year 1991 at Ningbo, is one of the top 10 Chinese injection molding machinery manufacturer. Nearly  30 years, we had established more than 60 sales and service agencies in China and overseas.

We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.

These products find application in various industries for several functions.

We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
